Build order and what is parked

Where we are

The design sections

What exists in code today

The code that ran the Asian Games 2026 is the starting point. Checked on branch feat/result-feeds, commit 76ef1e2.

None of the new tables the sections agreed exists yet. A search of packages/ on 7 Oct found no match for command_failure, integration_key_state, changed_seq, plugin_release, release_default, feed_dependency, alert_signal, process_beat, replica_heartbeat or pg_notify.

The build order

Proposed This order is proposed. It has not been agreed with the user. It is built from the dependencies the section pages state. A phase starts when the phases it needs are done. Effort and dates were not estimated, and no page gives them.

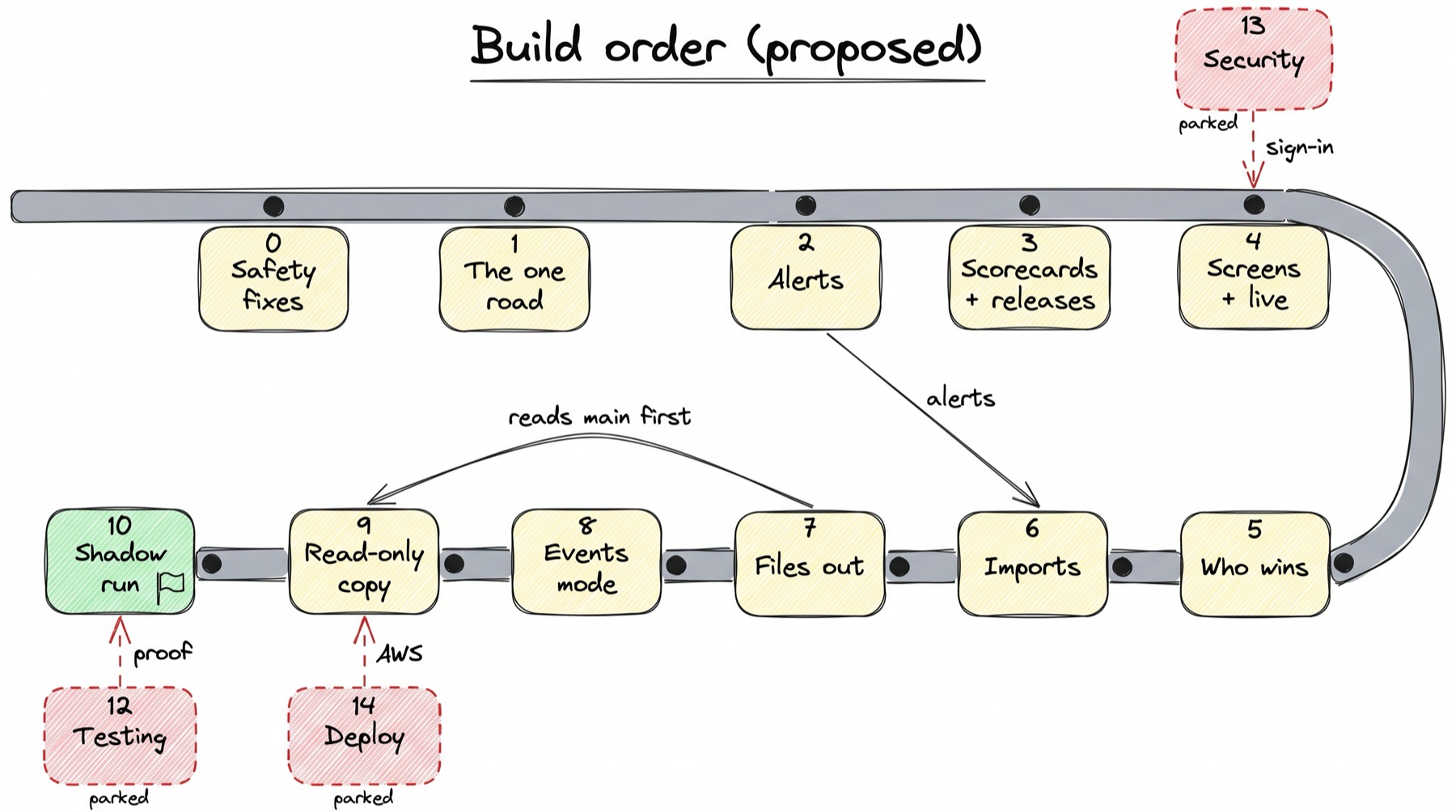

The order at a glance

Phases 2, 3 and 4 can run side by side once phase 1 is done. Phase 0 and the first six steps of phase 9 need nothing and can start any time.

What month 1 means. Target 9 (Section 1) names the first release as "the base first (scoring worker, workflows, console), ready in one month and proven with football and curling". In this order that is phases 1 to 4, plus the minimum alert set D8 asks for in month 1 (phase 2). Whether phases 5 to 9 must be done before the shadow run is not stated on any page. That is open question 1 below.

Phase 0: Safety fixes and quick wins Proposed

• Builds: the fixes in Quick wins below. Each is small, already agreed or a plain bug, and stands alone.
• Decisions: Imports migration step 1; Scoring migration step 1; Section 9 order steps 1 to 4 (E1, E3, E4); Section 10 order step 1 (DB13, DE8, DE10); Section 8 step 1 (B1, harmless while nobody listens); Section 11 steps 2 and 3 (A7, A9, N5); Section 6, P11.
• Depends on: nothing.
• Done when: each fix has its own test. For example: an SFTP test host that accepts and then hangs times out at 60 s, and other destinations deliver on time (Section 9, D4). A rebuild with no real change sends nothing (D3). make new-sport, then make check, passes (P11).
• Pages: Feeds, Database, Imports, Scoring engine, Sport plugins.

Phase 1: The one road (Section 4) Proposed

Everything else is built on this phase. Imports send their batches through road.run. The console's outbox needs required keys, five answers and conflicts. Live updates, stats and alerts all use the late-commit-safe outbox reader.

• Builds: the new command and command_failure tables; changed_seq on fixture and fixture_competitor; the xid column on domain_event and the reader in core/.../outbox/reader.py; road.run; the row lock FOR NO KEY UPDATE in a fixed order; a required key; the version check at three levels; five answers; refusals saved with a code and a sentence; two connection pools with pool-level time limits; lock metrics and alerts.
• Decisions: C1 to C12, L1 to L9, L11 to L14, L16 to L18, and M9 (Section 5). L10 (sport code in killable worker processes) lands in phase 8, where Section 5's migration order puts it (step 4). L15 (commands in their own ECS service) needs deploy work: see Section 14.
• Depends on: nothing. Phase 0 makes it calmer, not possible.
• Done when:
  1. The two-writer test (L12): two connections send to one match at once, many times, and every round ends in one order or the other. Section 12's local harness measured 0 wrong rounds out of 1,000 with the lock, and 1,000 out of 1,000 with the lock removed (laptop, 7 Oct).
  2. Kill the server between the writes and the commit, and after the commit, then retry with the same key: never half saved, never saved twice.
  3. A used key with a different body is refused as key_reused (C2).
  4. "Accepted" goes out only after COMMIT returns (C4, L11). Today the commit runs after the answer (packages/admin/src/omnium_admin/deps.py:28).
  5. A note whose transaction commits late is still read by the outbox reader (L9).
• Pages: Commands, Workflow code.

Phase 2: Alerts, beats and logs (Section 11) Proposed

Alerts come early because imports (I10, I13), files out (Section 9, D6, E6), stats (D7), the scoring background check (S5) and copy lag (DB3) all raise alerts through this one service.

• Builds: the alert tables (alert_signal, alert, alert_event, alert_send, process_beat and the rule and route tables); alerts.raise_; the first rules with runbooks; the alert service; shared JSON logs; beats from every loop; the Health page; the Slack bot-token client; the trace id from the bridge to delivery; the nightly cleanup. This follows the monitoring page's order of work, steps 1 to 8.
• Decisions: A1 to A13, N1 to N9.
• Depends on: phase 1's late-commit-safe reader (N1). The ops.* commands can use today's engine.
• Done when: 8 senders raise one key at once and get one alert with count 8, and no sender waits on a lock. A signal that commits late is still folded. A worker that beats but makes no progress with work waiting raises worker-stuck. Two alert services run, and only the lock holder sends. Then one week on staging with sending off, to measure the noise, before Slack goes on (monitoring step 4).
• Waits on Section 14: the CloudWatch alarm on the alert service's beat (A8), email through SES (N6), the Slack token in Secrets Manager, and lasting storage for Prometheus (N8). Until then, every console screen shows a red banner when the alert service has not beaten for 60 s.
• Pages: Monitoring.

Phase 3: Scorecards and rule releases (Sections 5 and 6) Proposed

Most matches are scorecards. This phase makes the scorecard path complete and gives every match a fixed release of the rules.

• Builds: Section 5 migration steps 2 and 3: the engine/ package with road.py and scorecard.py; Games and Results move onto it; workflows/engine.py is removed; results.set_line and writers/lines.py; the mode set per competition. Section 6 migration steps 1 to 4, 6 and 8: code_sha over the whole package; the new plugin_release and release_default tables; fixture.release_id; the pin at creation; results.change_type and results.set_release; the releases screen. Step 9, the new-sport scaffold, is in phase 0.
• Decisions: S11 to S14 (Section 5); P1 to P3, P5, P7, P8, P10, P12, U1 to U3, R1 to R3, R6 (Section 6).
• Depends on: phase 1.
• Done when: two operators fixing different batters never block each other, and two fixing the same batter get "conflict" (S13). Changing a shared helper changes code_sha for every sport (P3). Taking a release back moves the defaults back, and matches on it keep it (P7). A change of type on a scorecard unit with places lists the places first, then removes only what was confirmed (R6). The goldens give the same answers through the new path.
• Settle first: the release_default NULL problem (open question 5).
• Pages: Scoring engine, Sport plugins, Workflow code.

Phase 4: Screens and live updates (Sections 7 and 8) Proposed

• Builds: the console's build order, steps 1 to 9: the outbox in IndexedDB and useChange; useField on every text field; results.edit_fixture; the five field states; React.lazy routes and virtual lists; parallel re-reads; read-only screens for viewers; the scorecard grid and Ctrl+K; the shared UI package and the desks moved into the repo. The live-updates build order, steps 1 to 7: pg_notify after each outbox insert; one listener per container; the client wrapper that reopens after any close; shared watches; record keys on the schedule reads; versions and gap detection; versions in heartbeats.
• Decisions: V1 to V10, F1 to F7 (Section 7); B1 to B8, G1 to G6 (Section 8).
• Depends on: phase 1 (required keys, five answers, the version check, the late-commit-safe reader).
• Done when: offline in the browser, 6 changes, then back online: all 6 saved in order, none twice (V1). A reload with 3 changes waiting sends all 3 (F1). Two browsers on one match: the other shows a new ball within 0.5 s, with no read request in its network log (B4, B8). 200 idle screens for 5 minutes: database queries a minute stay flat (B2). Kill the listening connection: screens catch up within 5 s, nothing missed (B1).
• Waits on parked sections: viewers get read-only screens only when people sign in (V8; Section 13). The stream's 10 s cut-off goes only after the proxy timeout is raised (G5, F5; the live-updates page tracks that in Section 14).
• Pages: Console, Live updates.

Phase 5: Who wins, claims and result status (Section 2) Proposed

No page gives a build order for Section 2. Its place here is my proposal.

• Builds: every source value saved as a claim; field groups; a priority list per group, per sport, competition and match; the hand edit as a source on each list; the "open overrides" screen; result status (live, unofficial, official, protested) with a version; the official lock and review items; the link from each published value to its winning claim.
• Decisions: T1 to T11 and the edge rules E2, E3, E4, E7, E10, E11, E13, E14, E16 (all Section 2).
• Depends on: phase 1. The command transaction saves the claims and the winner (C10).
• Why before imports: an import writes claims once this exists, and I9 needs the "may change official" setting (Section 2, T9 and T10). Building imports first would mean changing how they write twice.
• Done when: the page lists no tests, so these checks come from the decisions. An older claim from a source never replaces a newer one from the same source (T7). An official result refuses a different claim from a source and opens a review item (T9). Every published value names its winning claim, its source and why (T11).
• Pages: Truth and ownership.

Phase 6: Imports (Section 3) Proposed

• Builds: the imports migration order, steps 2 to 10: the fetch outside any transaction, with retries; the run recorded first; the new integration_key_state table; the fast path; batches of 25 matches through road.run; missing rows become review items; the settle window; row-log trimming and the 30-day delete; the console's two-line health, run screen and "Waiting for you" list. The import queue moves into the command service, in a process of its own with its own heartbeat, and admin-api only receives the doorbell (8 Oct). Proposed with it: a 60 s lease instead of today's one-hour block on a run cut off by a restart.
• Decisions: I1 to I13, U1 to U3, K1 to K8 (all Section 3).
• Depends on: phase 1 (road.run, changed_seq, the import pool, L7), phase 2 (I10 and I13 raise through the alert service), phase 5 (I9 reads the official setting).
• Done when: a crash at batch 7 of 12 loses nothing and repeats nothing (I5). A run of 4 rows writes (I12). A row missing from two full runs opens a review item and cancels nothing (I6). An HTTP call to Scout that hangs holds no lock (K4). The fast path answers 1,000 keys in about 2 ms (measured on a laptop, 6 Oct).
• Settle first: I9 against I12 (open question 3).
• Pages: Imports.

Phase 7: Files out: build in the delivery-worker, queues and Redis pull (Section 9) Proposed

• Builds: the Section 9 order, steps 5 to 9: proof of delivery and age in delivery_state and the client screens; alerts through the central service; the build in the delivery-worker on the Section 8 wake-up, calling resolvers directly on the main database; the new feed_dependency table and building only touched files; the stats reader fix; version and provisional or official marks per client. Then the Redis pull path (client files and, since 8 Oct, the public match documents), per-client send settings and secret keys, which the design doc has not yet placed in its order.
• Decisions: D1, D2, D5 to D15, E2, E5 to E12 (all Section 9). D3, D4, E1, E3 and E4 start in phase 0.
• Depends on: phase 1 (the stats reader uses L9), phase 2 (D6 and E6 alerts), phase 4 (the build is woken by the Section 8 wake-up, B1 and G1).
• Done when: 50 changes in 2 seconds build each file at most once per 3 s (D2, E3). A host down for 10 minutes then gets only the newest version of each file, and the alert fired at 60 s (E3, E6). A change to one match on a 7,000-unit Games rebuilds only the files that contain it (E2). Replaying a day of Games data puts 95% of change-to-file ages under 10 s (D6). A pull load test holds 5,000 hits a second (D15).
• Waits on parked sections: how pull keys (D14) are issued, stored and revoked is Section 13. The D15 load test needs a load environment (Section 12, T10, and Section 14).
• Pages: Feeds.

Phase 8: Events mode (Sections 5 and 6) Proposed

• Builds: Section 5 migration steps 4 to 9: the step-function contract, sport worker processes and code_sha checked on every event; football's step function; events.py, state.py and corrections.py; the background check verify.py; cricket's step function; the other sports move over; scoring/pipeline.py is removed. Section 6 steps 5 and 7: releases side by side in workers; the CI release workflow and the replay corpus.
• Decisions: S1 to S10, M1 to M8 (Section 5); L10 (Section 4); P4, P6, P9, R4, R5, R7 (Section 6).
• Depends on: phases 1 and 3.
• Done when: a full-length synthetic match per sport: the last 100 events cost at most 2 times the first 100, and the state stays under 16 KB (M8). A correction at a random event equals a fresh replay of the corrected log. A sport with a deliberate endless loop costs one command "try again", and the server keeps answering others. A match started on release A stays on A after B is installed (P6). A scoreboard row damaged by hand is found within one interval and rebuilt through a command, with an alert (S5). A recorded cricket match runs through the new engine in a test (Section 1, D3).
• Waits on Section 13: releases reach prod only on a person's approval (P5, R7). Who may press it is Section 13's question.
• Pages: Scoring engine, Sport plugins.

Phase 9: Read-only copy and retention (Section 10) Proposed

• Builds: the database order of work. Steps 1 to 6 can start any time: quick wins; Sessions.write() and Sessions.read() with each route choosing; storing only changed import rows; monthly partitions for integration_row and domain_event; the migration runner limits and its CI check; the health page and db_size_daily. Step 7 is phase 7's build from the main database. Step 8: the new replica_heartbeat, the lag watcher and the fallback, tested against a real copy in Docker. Step 9: the copy itself on AWS.
• Decisions: DB1 to DB15, DE1 to DE10, and the 7 Oct chat rule (Section 10).
• Depends on: phase 2 (the alert service writes the heartbeat, DE2) and phase 7 (the delivery-worker builds from the main database, D1). DB5 says a real copy is switched on only after both of these hold: the delivery-worker builds from the main database directly, and every read route has passed against a real copy.
• Done when: the DB5 conditions hold. A copy over 5 s behind moves reads with a freshness limit to the main database. Dropping a month of a partitioned table replaces the delete (59 ms against 9.3 s, laptop, 7 Oct).
• Waits on Section 14: the copy on AWS (DB6), cost and setup. No AWS step without asking first.
• Settle first: the /v1 documents route (open question 2).
• Pages: Database.

Phase 10: Shadow run, then switch clients (Section 1) Proposed

• What happens: football and curling run in shadow next to the legacy .NET system on the same real matches, and the outputs are compared after every match. Clients switch one by one after two clean weeks (D4). Client feeds moved from the legacy system keep exactly the same responses (D12). One named person is on duty per live day (D8). Three device setups are certified (D10).
• Decisions: D2 to D4, D8, D10 to D12, D15 (Section 1).
• Depends on: "the base is fully built and tested" (D15). D3 adds that a recorded cricket match must run through the foundation in a test before it counts as done (phase 8).
• Waits on Section 12: "tested" has no agreed meaning while Section 12 is parked. The shadow run cannot honestly start until it has one.
• Pages: Goals.

Quick wins that need no new design

Each item is already agreed, or is a plain bug. None needs a new table design, and none depends on another phase.

File paths are short forms of the paths on each page. The last row is parked with Section 12.

Parked: testing (Section 12) Parked

Section 12 is written but parked. On 7 Oct the user said: "keep this aside, first we focus on building the system". All 16 product decisions (T1 to T16) and 10 engineering decisions (H1 to H10) were Proposed. None was agreed. The doc has no comment threads. Everything below is parked.

What the doc found today

The bottom of the test ladder is solid. make check runs lint, strict type checks, 7 import rules, the flows structure check and the tests. CI starts Postgres 17, builds the test database and stops if it is missing. Above that, most things are missing.

The 7 Sep load test (one laptop, one scoring process, from loadtest/PHASE0-REPORT.md, as quoted in the doc): 5 live matches gave 9.9 accepted a second with a 130 ms 99th percentile; 100 matches gave 33.1 a second and 4.4 s; 250 matches gave 38.5 a second and 7.5 s. The report's own finding: the refold on every ball was the ceiling. Sections 4 and 5 rebuild exactly that path, so these numbers are the baseline to beat.

What the doc proposed

What it measured (laptop, 7 Oct): the two-writer test with the row lock, 1,000 rounds in 9.31 s, 0 wrong; with the lock removed, 1,000 of 1,000 wrong. A toy property test found a real bug on its first run: an undo left "home: 0" where there was nothing before. After the fix, 1,000 cases of up to 600 events took 1.16 s.

What it would have proven. Its pass marks are the numbers the agreed sections promised: a person's command under 30 ms at the 95th percentile, the lock under 20 ms at the 99th, a second scorer under 0.5 s, files under 10 s, 5,000 pull hits a second. While Section 12 is parked, these stay promises. Several "done when" checks above depend on them.

Parked: security (Section 13) Parked

Section 13 was parked on 7 Oct before it was written. It has no decisions. These items were handed to it by earlier sections, or found while writing these pages.

Parked: deploy and operations (Section 14) Parked

Section 14 was parked on 7 Oct before it was written. These items were handed to it.

Open questions found while writing these docs

Each was flagged on a page, or found in the code for this page. None is settled. The last column says which phase must wait for the answer.
