Commands and the workflow engine

What this part does

The command road answers six questions. If any one is answered wrong, data is lost, counted twice, or saved without anyone knowing.

What a command is

A command is one request to change something, sent over HTTP to the bridge. Its address today is POST /workflows/{workflow}/subjects/{kind}/{ref}/commands, and its body is CommandIn (packages/admin/src/omnium_admin/routers/bridge.py:183).

The subject is the thing the command changes: one match (a fixture) or one event (a competition, for medal tables, schedules and players). How a command, its validations and its actions are written in the flows plugin is on Writing a workflow in code. This page is the engine side: what happens to a command once it arrives.

How it works

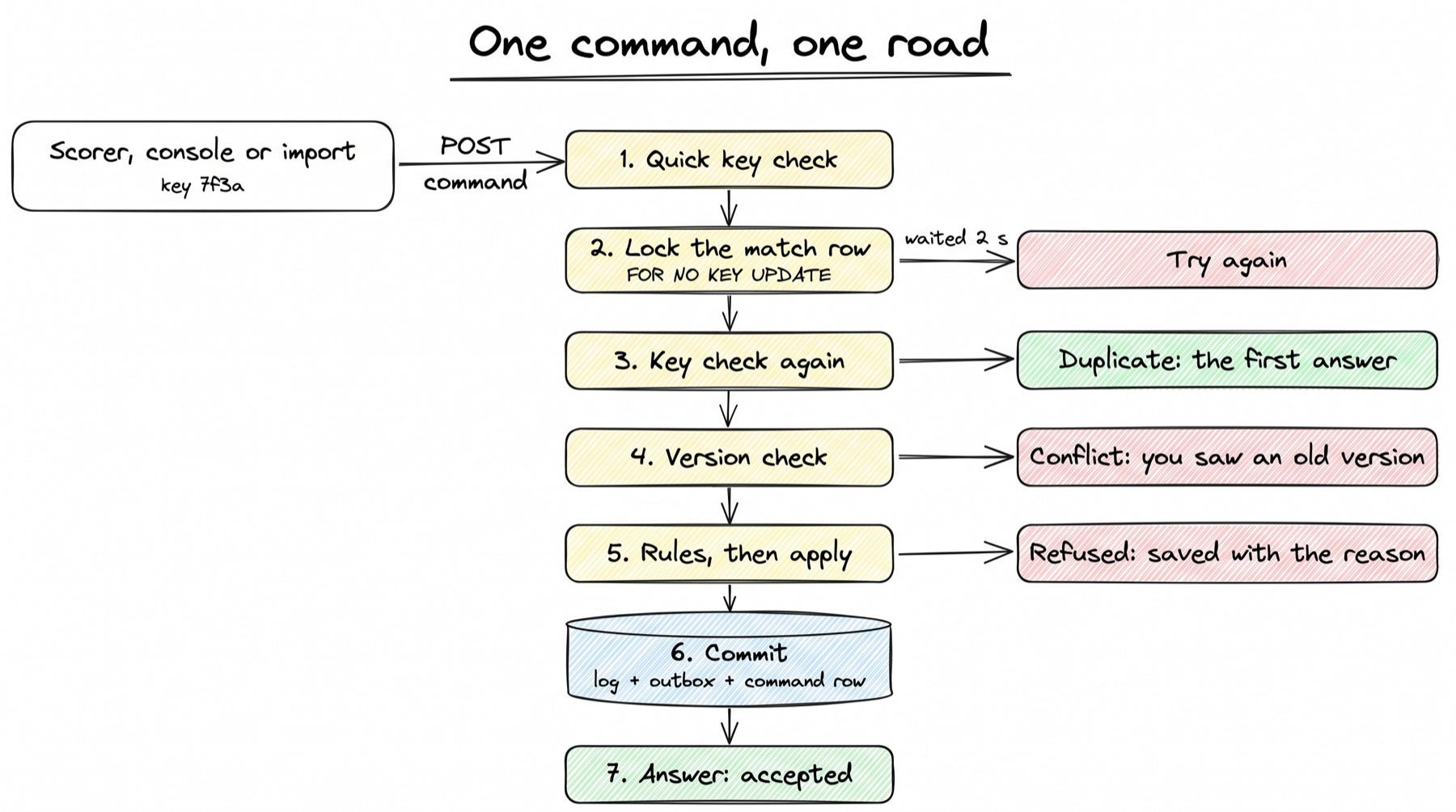

The road, step by step, as agreed in Section 4. The numbers match the drawing. Steps 1 to 5 can each end the command early, by a side exit. Only steps 6 and 7 make it real.

Before the road: the sender keeps the command, with its key. A screen keeps the command on the device until an answer comes. It makes the key once, and every retry sends the same key. A provider message takes its key from the provider's own message number. An import batch uses the run's id plus the batch number.

1. Quick key check, before any lock. One index lookup in the command table. A retry of a finished command is answered "duplicate" at once. This is only a shortcut; step 3 is the check that counts. Input of the wrong shape is also refused here, before any lock.
2. Lock the match row. SELECT last_seq FROM fixture WHERE id = $match FOR NO KEY UPDATE. One command at a time per match, for a few milliseconds. The same read returns the match's log number. A command that waits more than 2 s gets try again.
3. Key check again, under the lock. Seen with the same body: duplicate, with the first answer. Seen with a different body: refused (key_reused).
4. Version check. An edit carries the changed_seq of each row it changes. A ball carries the last play event the sender saw. If anything moved on: conflict, with what changed. A pure add (a commentary line) skips this.
5. Rules, then apply. The command's validations run. A "no" from a rule is saved as a refusal, and nothing else is written. Then the change is worked out: "apply once" for results, schedules and imports, "fold" for live scoring (Scoring engine).
6. Commit it all in one transaction. The log row (timeline_item), the claims and the winner from Section 2, the note to feeds (domain_event), the new fixture.last_seq, and the command row with the exact answer.
7. Answer. "Accepted" goes out only after COMMIT returns.

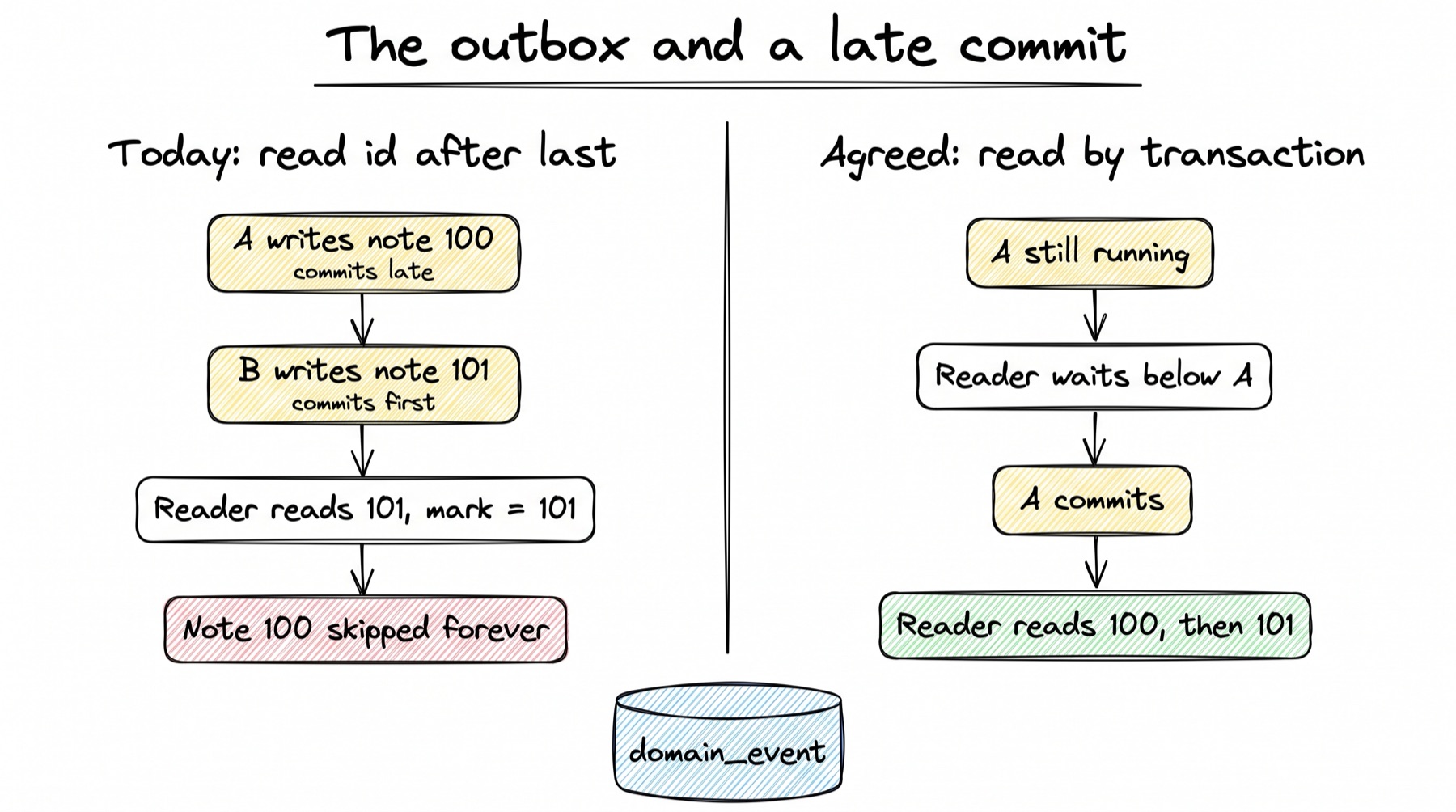

After the road: feeds and screens read the note, by transaction id, so nothing is skipped (see "The outbox, and the late commit" below).

The five answers

Every answer has the same body, with an outcome field saying which of the five it is.

Locks, explained from the start

A lock is a "one at a time" rule. While one command holds the lock on match 42, a second command for match 42 waits its turn. Commands for other matches do not wait.

The agreed lock is a row lock that Postgres keeps on the match's own row in the fixture table. Our code never writes a "locked" flag anywhere. Postgres marks the row with the id of the transaction that holds the lock, and the mark counts only while that transaction is running. When the transaction ends, by commit, by rollback, or because the connection died, the lock is gone at once. Nothing is ever left behind to clean up.

Postgres has four strengths of row lock. We use FOR NO KEY UPDATE, the second strongest. It is the lock a normal UPDATE of non-key columns takes anyway, so we take it a little earlier, at the start of the command.

Why sorted order stops deadlocks. A deadlock is two commands each waiting for a lock the other holds, in a circle, forever. It can only happen when two commands take the same locks in a different order:

If everyone locks in the same fixed order, the circle cannot form. Both X and Y try match 3 first. One gets it. The other waits at the very first lock, holding nothing, so the first one always finishes. The agreed order (L2) is: the event first, then matches, then people and teams, each kind sorted by id, all in one statement per kind. If a deadlock happens anyway, Postgres finds it within about 1 second (its default deadlock_timeout), cancels one command, and that command gets "try again".

What the lock does not decide. The lock decides the order: one command at a time per match. It does not decide what clients see when sources disagree. That is the Section 2 priority list (Truth and ownership). Every source's value is saved, and the winner of each field group is shown.

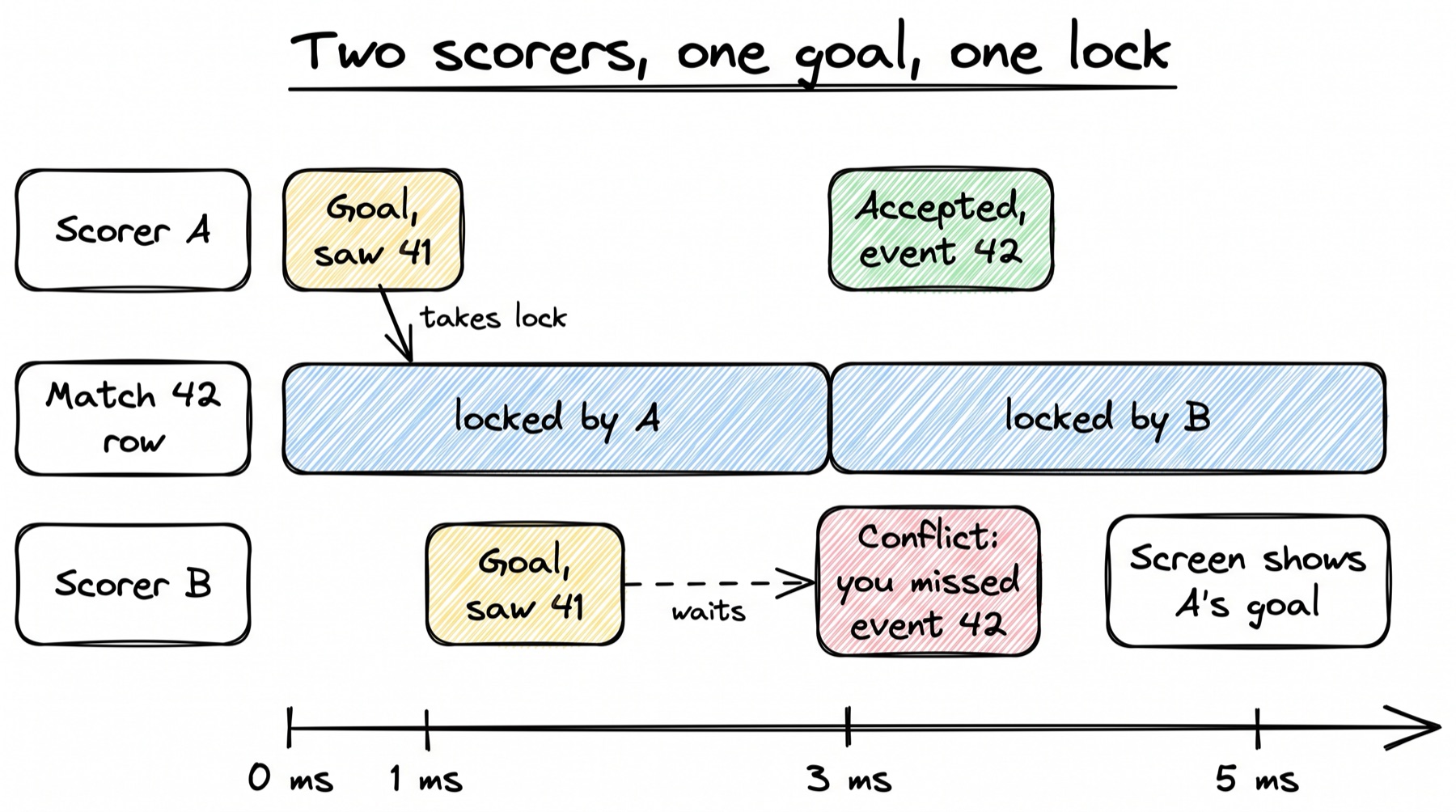

A worked example

Low-level design

Today's road, in the code Built today

Today there are two engines. Games and Results commands (apply mode) go through engine.run. Live scoring desks go through pipeline.command. Both are called from send_command in the bridge router.

# packages/core/src/omnium_core/workflows/engine.py:107-126 (today, trimmed)
kind, subject_id = _subject(workflow, event, fixture)
program, node = await _command(session, workflow, code, actor)

if not flows_host.spec_for(node.impl).imports:
    await guard_scoring_txn(session)            # SET LOCAL timeouts, a person's command only
await session.execute(sa.select(sa.func.pg_advisory_xact_lock(ledger.lock_key(subject_id))))
stream_id = await streams.stream_for(session, kind, subject_id)

if idempotency_key:
    prior = await _prior_seq(session, stream_id, actor, idempotency_key)
    if prior is not None:
        return CommandOutcome(accepted=True, code=code, duplicate=True, seq=prior)

problems = flows_host.command_input_problems(node.impl, payload)
if problems:
    return _refusal(code, "; ".join(problems))

In plain words: it finds the subject and the command, sets the time limits for a person's command, then takes a lock on the subject. The key check runs under the lock, which is right. But the lock is an advisory lock on the subject id: for a Results edit the match, for a Games command or an import the whole event. The key is looked up in timeline_item, so a refused command leaves no key behind. Nothing compares the body, so the same key with a different body is answered "duplicate".

# packages/core/src/omnium_core/scoring/ledger.py:167-177 (today)
def lock_key(ref_id: uuid.UUID) -> int:
    """A signed 64-bit advisory-lock key for anything identified by a uuid."""
    return int.from_bytes(ref_id.bytes[:8], "big", signed=True)

In plain words: the lock number is the first 8 bytes of the id. Our ids are uuid7 (uuid_utils, packages/contract/src/omnium_contract/models/base.py:13), which start with the time they were made. Ids made in the same moment share their first 8 bytes: five made in a row on 7 Oct all began 01a1165c-f545-7e91. So matches made together get the same number and share a lock. The two speed-climbing matches fixed on 1 Oct (01a0a101-2736-79a2-…) share one. No data is lost, but an edit on one waits for the other. L1 replaces this with the row itself.

# packages/core/src/omnium_core/workflows/streams.py:60-70 (today, trimmed)
async def next_seq(session: AsyncSession, kind: str, subject_id: uuid.UUID) -> int:
    """The next position in this subject's log. One row lock; no scan, no race."""
    if kind == FIXTURE:
        seq = (await session.execute(
            sa.update(Fixture).where(Fixture.id == subject_id)
            .values(last_seq=Fixture.last_seq + 1).returning(Fixture.last_seq)
        )).scalar_one_or_none()

In plain words: the match row already counts its log in fixture.last_seq, and an event counts in ledger_stream.last_seq. This UPDATE already takes a row lock on the match, but only late, after the rules have run. The agreed design takes the same row lock at the start instead, and drops the advisory lock. No new lock table is needed.

# packages/admin/src/omnium_admin/deps.py:12-32 (today, trimmed)
async def get_write_session(request: Request) -> AsyncIterator[AsyncSession]:
    factory: async_sessionmaker[AsyncSession] = request.app.state.session_factory
    async with factory() as session:
        try:
            yield session
            await session.commit()
        except Exception:
            await session.rollback()
            raise
        await dirty.flush(request.app.state.cache, session)

In plain words: the commit runs in the teardown of a FastAPI dependency. In FastAPI 0.139.0 (the installed version), a dependency's teardown runs on the "request" exit stack, which closes after await response(scope, receive, send) has sent the answer (fastapi/routing.py:132-137, fastapi/dependencies/utils.py:669-671; checked 7 Oct). So send_command (bridge.py:213) can answer "accepted" and then fail to commit. This is the C4 bug. It hits every console edit. The fix: the command road commits inside itself, before it returns.

The tables Agreed, to build

Two new tables and two new columns. The match lock needs no new table: it is the fixture row (and ledger_stream for an event).

-- NEW. Every command we finished, with the answer we gave. A retry reads it.
CREATE TABLE command (
  command_id    text PRIMARY KEY,         -- the key: made by the sender, sent again on every retry
  sender        text NOT NULL,            -- device, provider or integration
  subject_id    uuid NOT NULL,            -- the match (or event) it changed
  payload_hash  bytea NOT NULL,           -- same key + different content = refused
  outcome       text NOT NULL,            -- 'accepted' or 'refused'
  answer        jsonb NOT NULL,           -- exactly what we answered
  seq           bigint,                   -- the log row it made, if accepted
  received_at   timestamptz NOT NULL,
  finished_at   timestamptz NOT NULL
);                                        -- kept 30 days, then deleted by a daily job

-- NEW. Commands that failed with an error (not a rule's no). Written in its own
-- short transaction, because the failed one was rolled back.
CREATE TABLE command_failure (
  command_id  text PRIMARY KEY,
  attempts    int NOT NULL,
  last_error  text NOT NULL,
  last_at     timestamptz NOT NULL
);

-- NEW COLUMN. Every row a command can edit gets the log number of its last change.
ALTER TABLE fixture_competitor ADD COLUMN changed_seq bigint;   -- and the other editable rows

-- NEW COLUMN. The outbox row records its transaction, so readers never skip a late commit.
ALTER TABLE domain_event ADD COLUMN xid xid8 NOT NULL DEFAULT pg_current_xact_id();

The log, timeline_item, stays as it is: one row per accepted command, numbered per match, never updated or deleted. Today it also holds the retry key, with a unique index on stream, source and key (uq_timeline_item_idempotency, packages/contract/src/omnium_contract/models/timeline.py:59).

Why a separate command table, and why 30 days (C2, L13). The command row holds the answer, including a refusal, which the log never holds. A retry within 30 days always gets the same answer. The daily job deletes old rows in batches of 10,000, so it never holds a long lock. If the table ever passes about 50 million rows, it switches to one partition per day and drops a whole day at once.

Why it stays in the same database. The user asked whether the command table could move to another database later. The design advises against it. "Was it saved?" has a true answer only because the command row and the change commit together (L3, L11). With two databases, a crash between two commits makes that answer a guess. Rows older than 30 days can be copied elsewhere for history.

Size. Expected rows: 50 matches a day (Section 1) × about 1,500 commands a match (estimate) = 75,000 a day, about 2.3 million in 30 days. The speed test used 10 million rows, four times that. The index has 3 levels at 10 million rows (737 MB). Ten times more rows adds about one level: one more page read, a few microseconds. bigint lasts about 29 million years at 10,000 commands a second, and the log number counts per match.

One command, statement by statement Agreed, to build

This is the whole transaction for one command on one match, from the design doc. The doc's first draft had three SET LOCAL lines after BEGIN; they are left out here, because L16 moved the limits onto the connection pool. Everything between BEGIN and COMMIT is saved together or not at all.

-- 0. Fast path, before any lock: a retry of a finished command is answered at once.
SELECT outcome, answer, payload_hash FROM command WHERE command_id = $id;

BEGIN;                                              -- READ COMMITTED
-- (time limits come from the connection pool, not SET LOCAL: see L16)

-- 1. Take the match lock and read its log number. NO KEY UPDATE, not UPDATE,
--    so other tables can still insert rows that point at this match.
SELECT last_seq FROM fixture WHERE id = $match FOR NO KEY UPDATE;

-- 2. Seen this key? Checked again under the lock, so two copies of one
--    command arriving together can never both run.
SELECT outcome, answer, payload_hash FROM command WHERE command_id = $id;
--    found, same hash  -> ROLLBACK; answer "duplicate" with the saved answer
--    found, other hash -> ROLLBACK; answer "refused: key used for another command"

-- 3. Version check, only on the rows this command edits.
SELECT changed_seq FROM fixture_competitor WHERE id = ANY($rows);
--    any changed_seq different from the one the sender saw -> ROLLBACK; "conflict"

SAVEPOINT work;
-- 4. The sport's rules and the change, worked out in plugin code (no SQL inside).
-- 5. The writes:
INSERT INTO timeline_item (stream_id, seq, ...) VALUES (..., $last_seq + 1, ...);
--    the claims and the winner (Section 2), and the edited rows with
--    changed_seq = $last_seq + 1
INSERT INTO domain_event (...) VALUES (...);         -- the note to feeds and screens
UPDATE fixture SET last_seq = $last_seq + 1 WHERE id = $match;
INSERT INTO command (command_id, ..., outcome, answer, seq)
     VALUES ($id, ..., 'accepted', $answer, $last_seq + 1);

--    If a rule said no:
--      ROLLBACK TO SAVEPOINT work;
--      INSERT INTO command (..., outcome, answer) VALUES (..., 'refused', $why);

COMMIT;                                              -- synchronous_commit = on
-- 6. Only now is the answer sent.

In plain words:

• The key is checked twice. The quick check answers most retries without waiting for the lock. The check under the lock is the one that counts. If two copies arrive together, both pass the quick check, but only one gets the lock first; the second then finds the first's row. The primary key on command_id is the last guard: a third copy can never insert a second row.
• The version check looks only at the rows this command edits (L4). If it checked the whole match, every new goal from a provider would make every operator edit fail with "conflict" during a busy match.
• A rule's "no" rolls back to the savepoint and saves only the refusal row. So a refused command writes nothing else, and support can still read why (C5).
• The version has three levels set per command (L17): none (a commentary line), rows (an edit, using changed_seq), and play (every ball, goal or point carries the last play event the sender saw).
• Isolation is READ COMMITTED, the Postgres default, plus one rule: no write to a record without holding its lock (L12). SERIALIZABLE was not chosen because under normal load it would turn many commands into retries.

The road as code Agreed, to build

These files are new; the code is from the design doc's low-level part and is not in the repo yet. Section 5 builds its engine on the same road.run.

# core/src/omnium_core/engine/locks.py   (new, agreed design)
ORDER = ("event", "fixture", "participant")          # L2: always this order, ids sorted inside each

async def take(session: AsyncSession, want: Locks) -> dict[uuid.UUID, int]:
    """Lock every record the command changes. Returns each fixture's last_seq."""
    seqs: dict[uuid.UUID, int] = {}
    if want.event:
        await session.execute(sa.select(Competition.id).where(Competition.id == want.event)
                              .with_for_update(key_share=False, read=False, nowait=False, of=Competition))
    if want.fixtures:
        rows = await session.execute(sa.select(Fixture.id, Fixture.last_seq)
                                     .where(Fixture.id.in_(sorted(want.fixtures)))
                                     .order_by(Fixture.id)
                                     .with_for_update(key_share=True))   # = FOR NO KEY UPDATE
        seqs = dict(rows.tuples())
    if want.participants:
        await session.execute(sa.select(Participant.id).where(Participant.id.in_(sorted(want.participants)))
                              .order_by(Participant.id).with_for_update(key_share=True))
    return seqs
# lock_timeout comes from the connection (L16); a timeout raises 55P03 -> try_again(lock_timeout)

In plain words: one statement per kind, in the fixed order, with the ids sorted. In SQLAlchemy, with_for_update(key_share=True) is how you write FOR NO KEY UPDATE. The same read returns each match's last_seq, so the lock and the log number come in one trip. Postgres error 55P03 means "lock not available", and the road turns it into "try again".

# core/src/omnium_core/engine/answers.py   (new, agreed design)
def payload_hash(cmd: Command) -> bytes:
    # canonical JSON: sorted keys, no spaces, so the same command always hashes the same
    body = json.dumps({"code": cmd.code, "input": cmd.input, "subject": str(cmd.subject)},
                      sort_keys=True, separators=(",", ":"), default=str)
    return hashlib.sha256(body.encode()).digest()

async def prior(session, cmd) -> Answer | None:
    row = (await session.execute(sa.select(command.c.payload_hash, command.c.answer)
                                 .where(command.c.command_id == cmd.key))).first()
    if row is None:                         return None
    if row.payload_hash != payload_hash(cmd): return Answer.refused("key_reused", "This key was used for a different command.")
    return Answer.from_saved(row.answer, duplicate=True)

async def save(session, cmd, answer) -> None:
    await session.execute(sa.insert(command).values(
        command_id=cmd.key, sender=cmd.source, subject_id=cmd.subject, payload_hash=payload_hash(cmd),
        outcome=answer.outcome, answer=answer.as_json(), seq=answer.seq,
        received_at=cmd.received_at, finished_at=sa.func.now()))
    # a second copy racing past prior() fails here on the primary key -> answered as duplicate

In plain words: the hash is of the code, the input and the subject, in a fixed JSON form. prior() is used both for the quick check and the check under the lock. A screen bug that sends a used key with a different body is refused, so a bug cannot hide a change. Section 5 measured the cost: sha256 of a 10 KB state takes 0.0044 ms, canonical JSON of it 0.05 ms (laptop, 6 Oct).

# core/src/omnium_core/engine/versions.py   (new, agreed design)
async def stale_rows(session, cmd) -> list[dict] | None:
    saw = cmd.saw.rows if cmd.saw else {}
    if not saw: return None                                     # an add: no check (C3)
    now = dict((await session.execute(sa.select(FixtureCompetitor.id, FixtureCompetitor.changed_seq)
                .where(FixtureCompetitor.id.in_(saw)))).tuples())
    stale = [rid for rid, seq in saw.items() if now.get(uuid.UUID(rid)) != seq]
    return await read_rows(session, stale) if stale else None   # the rows as they are now, for the screen

In plain words: compare each row's changed_seq with what the sender saw. Any row that moved on goes back in the conflict answer, as it is now, so the screen can update without a reload.

Pools and time limits Agreed, to build

Every wait has a limit, and crossing a limit gives an answer the sender knows how to handle. The limits are safety nets, not speed targets (L6): set about 1,000 times above today's measured median, so a slow moment never refuses a correct command.

The speed target is separate: a person's command under 30 ms of server time at the 95th percentile. Crossing it refuses nobody. An alert fires if it stays over for 5 minutes.

Where the limits live (L8, L16). Today a person's command sets two limits with SET LOCAL on every transaction:

# packages/core/src/omnium_core/scoring/pipeline.py:838-842 (today)
ms = int(get_settings().scoring_txn_timeout_ms)          # 10_000 (settings.py:290)
if ms <= 0:
    return
await session.execute(sa.text(f"SET LOCAL statement_timeout = {ms}"))
await session.execute(sa.text(f"SET LOCAL idle_in_transaction_session_timeout = {ms}"))

Each SET LOCAL line is one more round trip. Measured 5 Oct: the three SET LOCAL lines in the design's first draft added about 0.3 ms to every command (1.48 ms with them, 1.17 ms without, one sender). The fix costs nothing: db.py already sends statement_timeout on every new connection through asyncpg's server_settings, so the other limits ride the same way.

# packages/core/src/omnium_core/db.py:24-37 (today, trimmed)
return create_async_engine(
    url or settings.database_url,
    pool_size=settings.db_pool_size,              # 10 (settings.py:270)
    max_overflow=settings.db_max_overflow,        # 5
    connect_args={
        "server_settings": {"statement_timeout": str(settings.db_statement_timeout_ms)}  # 15_000
    },
)

# core/src/omnium_core/db.py   (agreed: two new callers of build_engine)
def build_command_engine(s: Settings) -> AsyncEngine:      # people and scorers
    return build_engine(s, server_settings={"lock_timeout": "2000", "statement_timeout": "5000",
                                           "idle_in_transaction_session_timeout": "5000"})
def build_import_engine(s: Settings) -> AsyncEngine:       # integration batches
    return build_engine(s, server_settings={"lock_timeout": "5000", "statement_timeout": "30000",
                                           "idle_in_transaction_session_timeout": "30000"})

In plain words: two pools, one for people's commands and one for imports, each with its own limits fixed on the connection when it opens. A command sends no SET lines. Commands and reads also use separate pools, so one busy match can never use up the connections that screens read with.

At most 2 waiting per match (L8). A command waiting for a lock holds a database connection. So each container lets at most 2 commands per match wait in Postgres at once (an asyncio.Semaphore(2) per fixture id). The rest wait in that container's memory, without a connection. With 4 containers, at most 8 connections wait on one match. Nothing correct depends on this line; it only saves connections. Postgres still decides the real order, first come, first served.

Two database trips per command (M9) Agreed, to build

The statement-by-statement transaction above is about 9 round trips. On AWS one trip in the same zone costs about 0.3 to 1 ms (estimate, to measure in Section 12). Nine trips would cost more than the work itself. Section 5 agreed M9: a command makes 2 trips:

1. One statement that takes the lock and reads the key, the state and the row versions together.
2. One call to a database function that does all the writes and the commit.

That brings a command to about 2 to 3 ms on prod (estimate). It does not grow with the number of matches until the database itself is busy. The function's details belong to Section 10 (Database).

Where the command road runs Agreed, to build

Today commands and imports both run inside the admin service, and the sport's code runs on the request's own thread. flows_host.py:240-241 says so itself: "a Python component cannot be [cut off], so the budget is enforced after the fact". Section 5 later narrowed L10: only sports scored event by event start workers; apply mode (operations and scorecards) never does, and a worker's wall-clock limit is 500 ms per ball (Scoring engine).

Senders Agreed, to build

The bridge outbox. The bridge gains a queue that keeps the key, saved in IndexedDB per device and subject, so a reload or a crash does not lose an unsent change.

// packages-ts/omnium-bridge/src/outbox.ts   (new, agreed design)
async push(cmd: Omit<Pending, "key" | "tries" | "sentAt">): Promise<Answer> {
  const p = { ...cmd, key: crypto.randomUUID(), sentAt: new Date().toISOString(), tries: 0 };
  await this.store.add(p);              // saved BEFORE the first send
  return this.drain(p.key);             // one at a time, oldest first (C12)
}
private async sendOne(p: Pending): Promise<Answer> {
  for (;;) {
    const a = await this.http.command(p);                 // same key every time
    if (a.outcome !== "try_again" && !a.networkError) {
      await this.store.delete(p.key);                      // accepted, duplicate, refused, conflict
      return a;                                            // conflict stops the queue: the app decides
    }
    p.tries += 1;
    await sleep(Math.min(30_000, 200 * 2 ** p.tries) * (0.5 + Math.random()));   // backoff + jitter
  }
}

In plain words: save first, then send. Send one at a time, oldest first, so an undo never arrives before the ball it undoes (C12). Only "try again" and a network error are retried, with the same key, after a growing wait plus randomness so all screens do not come back at the same moment. A conflict stops the queue until the person decides.

Imports (L7). A run's rows are grouped by match, sorted by fixture id, and cut into batches of at most 25 matches. Each batch is its own command and its own transaction, with key {run_id}:{batch_no}, on the import pool. A retried batch is a duplicate. Today the per-chunk key already exists (f"{key}:{index}", packages/core/src/omnium_core/integrations/service.py:452), but every chunk runs in one transaction owned by the caller (service.py:17), under one event-wide lock. See Imports.

The outbox, and the late commit Partly built

The outbox is the domain_event table. Each command inserts one row in the same transaction as its change, so a change and its note can never disagree. That part is built (packages/core/src/omnium_core/jobs_outbox.py:44, called at engine.py:171).

The bug is in how readers follow it. Today two readers read "every row with an id greater than the last one I saw":

# packages/admin/src/omnium_admin/routers/bridge.py:915-928 (today, trimmed): the live stream to screens
rows = (await session.execute(
    sa.select(DomainEvent.id, DomainEvent.kind, DomainEvent.fixture_id,
              DomainEvent.competition_id, DomainEvent.payload)
    .where(DomainEvent.id > cursor)
    .order_by(DomainEvent.id)
    .limit(500)
)).all()

The stats queue does the same (packages/stats/src/omnium_stats/triggers.py:68). A row gets its id when it is inserted, but readers see it only after its transaction commits:

1. Command A inserts its note and gets id 100. A is still running.
2. Command B inserts its note, gets id 101, and commits first.
3. The reader reads 101 and moves its mark to 101.
4. A commits. Row 100 is now visible, but the reader is already past it. It never reads it.

A console screen misses a change, and a stat is never worked out. It is rare, but silent, and it gets more likely as more commands run at once.

The fix (L9). Each note stores the id of its transaction, as xid8. A reader reads only notes from transactions older than the oldest one still running.

# core/src/omnium_core/outbox/reader.py   (new, agreed design)
async def read_after(session, cursor: tuple[int, int], limit: int = 500) -> tuple[list[Row], tuple[int, int]]:
    rows = (await session.execute(sa.text("""
        SELECT id, xid::text::bigint AS x, kind, fixture_id, seq, payload FROM domain_event
         WHERE (xid::text::bigint, id) > (:x, :id)
           AND xid < pg_snapshot_xmin(pg_current_snapshot())
         ORDER BY xid, id LIMIT :limit"""), {"x": cursor[0], "id": cursor[1], "limit": limit})).all()
    return rows, ((rows[-1].x, rows[-1].id) if rows else cursor)

In plain words: the cursor is now a pair (transaction id, row id). No transaction older than the "oldest still running" point can add a note any more, so nothing behind the reader's mark can appear later. Notes wait a few milliseconds longer than today. A long transaction makes every reader wait, which is one more reason imports run in short batches. Old rows get xid = 0 in the migration and are read first. Each reader keeps its own cursor: the live stream in memory per container, the stats queue in its existing cursor row.

Pruning: jobs_outbox.prune deletes notes older than 30 days (jobs_outbox.py:41, :75). I found no service that calls it outside tests (grep, 7 Oct).

Metrics and alerts Agreed, to build

Alerts are grouped by match and rule, so one problem sends one message per 15 minutes, not hundreds. The runbook has one query that shows who blocks whom (pg_blocking_pids) and one that ends that session (pg_terminate_backend). Ending a session rolls back only that one command, and its sender sends it again. Routing is Monitoring.

What a scorer sees

The screens are Section 7 (Console and apps).

When things go wrong

Every case ends with nothing lost and nothing counted twice. This is the agreed design; the "Built today" section says what is different now.

Can a lock freeze the system? The user asked this directly. In the agreed design, no. A lock is held for milliseconds on one match, and Postgres always lets it go: at commit, at rollback, when the connection dies, after 5 s of silence, or when a statement passes its limit. Reads never wait. The worst case: one match is slow for up to 5 s (an import batch: 30 s), its commands get "try again", and every other match carries on.

Today has two real ways to freeze (checked in code on 5 Oct, per the design doc):

Decisions

All 30 decisions in Section 4 are Agreed (closed 6 Oct 2026). M9 is from Section 5 and is listed because it shapes this road.

Built today, or still to build

Checked in the code on 7 Oct 2026 (repo at commit 76ef1e2), unless a row says otherwise.

Numbers

The test setup. A laptop with 8 cores and 16 GB, Postgres 17 with only 128 MB of its own memory. Tables: 10 million command rows (2.7 GB), 5 million log rows, 100,000 matches with 2 million side rows. Each run: 20 seconds with pgbench. No network between app and database; prod adds a round trip per statement. The load tests on AWS (Section 12) fail if the lock is held over 20 ms at the 99th percentile.

Read next

• The live scoring engine: what "fold" does with a command once it is on this road, and the sport worker processes.
• Bridge and live updates: how the outbox note reaches a second screen.
• Imports from Scout: how a run becomes batches of 25 matches on this road.
• Database and the read-only copy: the 2-trip write function, growth and retention.
